FAQs for Pixy LR

Created by Gremsy Support Team, Modified on Mon, 4 May at 2:28 PM by Gremsy Support Team

1. What is Pixy LR?

Answer: Pixy LR is a lightweight gimbal (495g) purpose-built for the Sony ILX-LR1 camera, designed to deliver high-quality imaging and stable performance for industrial and professional aerial applications.

2. Does Pixy LR support other cameras?

Answer: No, Pixy LR is specifically designed and optimized for the Sony ILX-LR1 and does not support other cameras.

3. Which lenses are supported by Pixy LR?

Answer: Pixy LR supports a wide range of Sony lenses, providing excellent image stabilization:

16mm – SELP1635G
24mm – SEL24F28G
28mm – SEL28F20
35mm – SEL35F28Z, SEL35F18F
40mm – SEL40F25G
50mm – SEL50F25G
55mm – SEL55F18Z
85mm – SEL85F18 (photography only)

4. What type of quick release does Pixy LR use?

Answer: Pixy LR uses Hyper Quick Release 3.0 (HQR 3.0), featuring a new I/O design and support for USB 3.0 transmission.

5. Does Pixy LR support USB 3.0 camera transmission?

Answer: Yes, Pixy LR is the first Gremsy gimbal to support USB 3.0, enabling faster data transfer, storage, and processing of images and videos.

6. What is the weight of Pixy LR?

Answer: Pixy LR weighs 495g (approximately 1 lb).

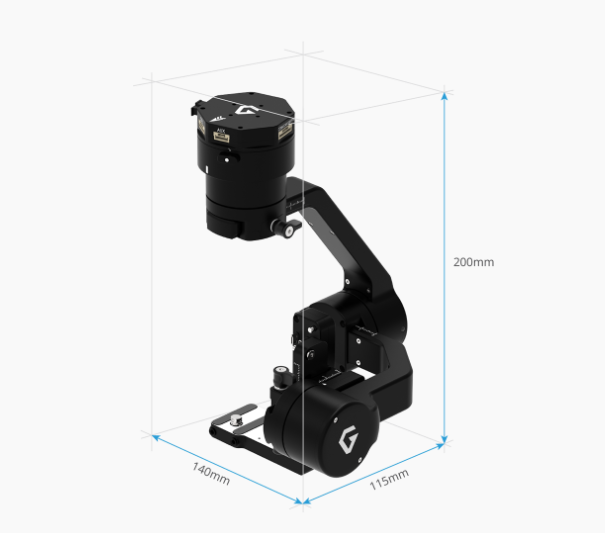

7. What are the dimensions of Pixy LR?

Answer: Dimensions (D × W × H): 140 × 115 × 200 mm

8. What is the input power range of Pixy LR?

Answer: Pixy LR supports a wide input range of 17–52V DC.

9. Does Pixy LR require additional cables to connect to the Sony ILX-LR1?

Answer: No, additional cables are not required.

Pixy LR includes a built-in output cable for connecting to the ILX-LR1. You only need to connect the appropriate ports on the quick release.

10. Which drone platforms are compatible with Pixy LR?

Answer: Pixy LR is compatible with several drone platforms, including:

Pixhawk
CubePilot
Skynode
Sony Airpeak
DJI M600 (manual control only)

11. Does Pixy LR support MAVLink?

Answer: Yes, Pixy LR supports the MAVLink 2 protocol.

12. Does Pixy LR support SDK/API for developers?

Answer: Yes, Pixy LR supports both:

- MAVLink SDK

- Gremsy SDK

This allows developers to build custom applications and integrations.

13. Is Pixy LR compatible with DJI Matrice 300/350 series?

Answer: No, Pixy LR is not compatible with the DJI Matrice 300/350 series.
