THE STEPS CONFIG WIFI (Forget Pass)


Step 1 : Reset module to default

- Connecting pin 2 vs pin 10

- Connecting module WIFI with gimbal has supplied power and wait until the Yellow LED blinking.





Step 2: Remove module wifi and disconnect pin 2 vs pin 10.


Step 3: WiFi module settings
- Connect module wifi with gimbal.

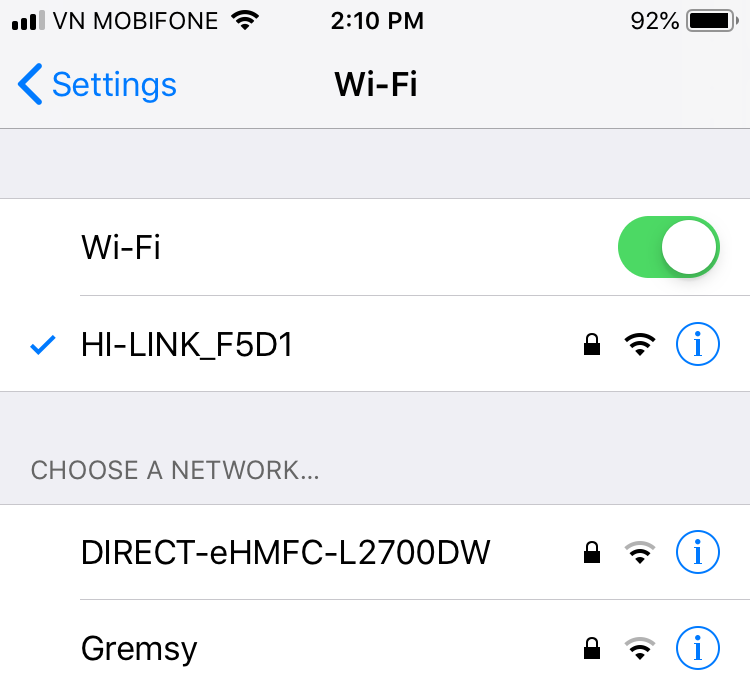

- Login Wifi - HI-LINK_XXXX with password : "12345678"


- Go to your browser and access IP: “192.168.16.254” :
    + User name : admin
    + Password : admin

- Follow the image below to setup you wifi module again, then click Apply

- 4 characters after Gremsy_ ( SSID ) is 4 characters of your own wifi module name.


Note : Gremsy wifi is 5 GHz so please use the compatible device to set it up.
